Adaptor Board
for use with a
Triscend E5 Hardware Development Platform

Many manufacturers produce "development kits" to allow potential customers to evaluate their microcontroller products without needing to commit to custom hardware design & manufacture. After evaluation, the development kit can usually still be used to make useful progress on the main project development before the first prototype of the "real" hardware becomes available.

These pictures show a small board made to facilitate such early developments on a Triscend development kit.

The board gives access to two RS232 ports on the development kit, and provides two Dallas 1-Wire™ interfaces (the two TO-92 devices are 1-Wire™ temperature sensors).

Top View

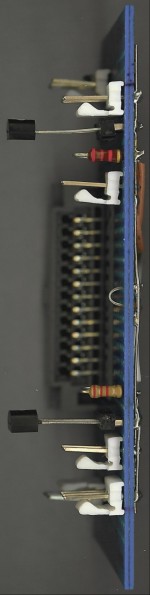

Edge View

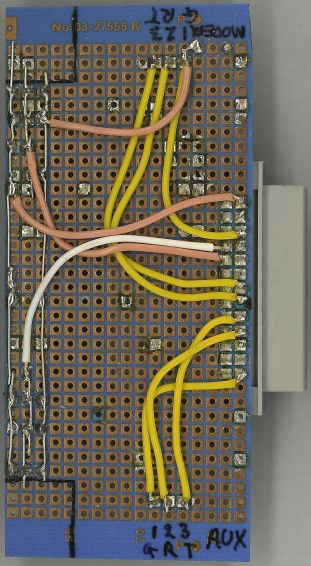

Bottom View

The board shown above is the original created by Antronics Ltd; the Client subsequently made a couple of copies for their own use on the project.

© 2004 Antronics Ltd.
